CS 6

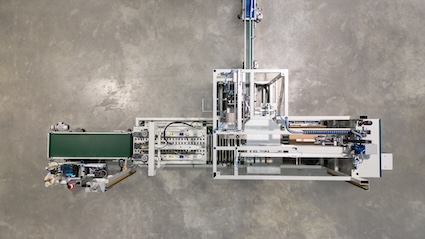

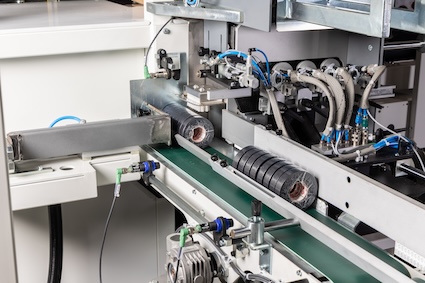

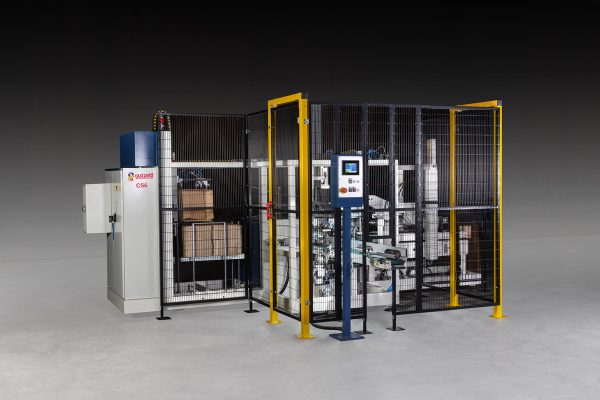

The case packer CS 6 is equipped for forming and filling carton boxes with tape rolls wrapped in accordion or tower composition. The carton boxes (American type), closed and stacked in the storage area, are collected by a mechanical arm and formed. As soon as the boxes are filled, the machine seals them.





Description

  • Adjustable carton magazine
  • Box opening and moved by vacuum

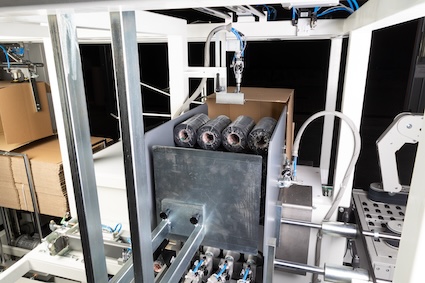

  • Automatic box filling station by interchangeable groups
  • Quick change of production with minimum adjustment
  • Box closing unit by means of self-adhesive taping group
  • Minimum maintenance
  • Possibility of connection with one Guzzetti wrapping machine

TECHNICAL DATA

  • Pneumatic feeding: 6 Bar
  • Air consumption: 250 lt/min.
  • Carton store capacity: 100

PRODUCTION DATA

  • Output: about 4 boxes/min.

Technical data

  • Pneumatic feeding: 6 Bar
  • Air consumption: 250 lt/min.
  • Carton store capacity: 100

Production data

  • Output: about 6 boxes/min.
