RS 3 DP

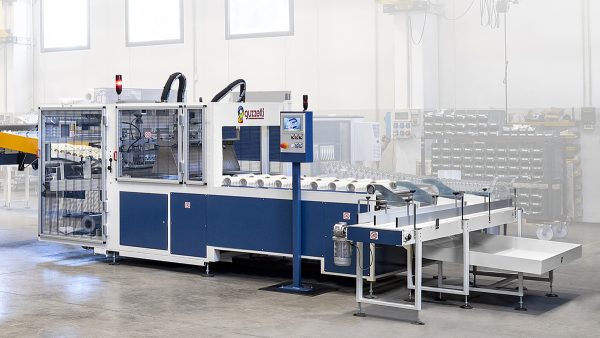

The automatic wrapper machine mod. RS 3 is conceived for the wrapping of adhesive tape rolls with thermo-shrinkable material in accordion or in tower configuration.
This type of packaging allows to combine more products together, put side by side avoiding that they get in contact and thus that they stick together.

Given the width of the sealing bar and the possibility of using heat-shrink film up to 1200 mm wide, it can process two towers or two concertinas for each cycle, thus doubling the production capacity of the RS 3.

The machine can be provided with automatic labelling system.

Description

  • welding bar length: 1200 mm
  • automatic film dereeling
  • max film width: 1180 mm
  • max film roll Ø: 300 mm
  • type of film: PE or PVC from 25 to 50 μ
  • electronic control of welding temperature
  • product transportation by rollers conveyor
  • conveyor belt speed control
  • film shrinkage by Leister hot air blowers
  • quick change of production with minimum adjustment
  • minimum maintenance

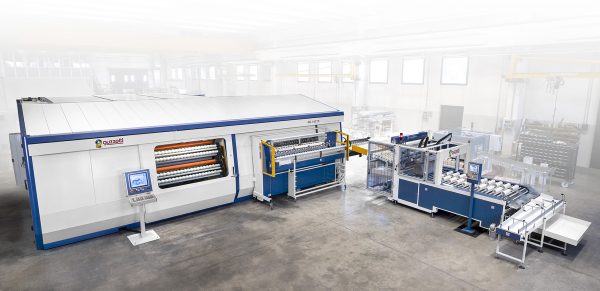

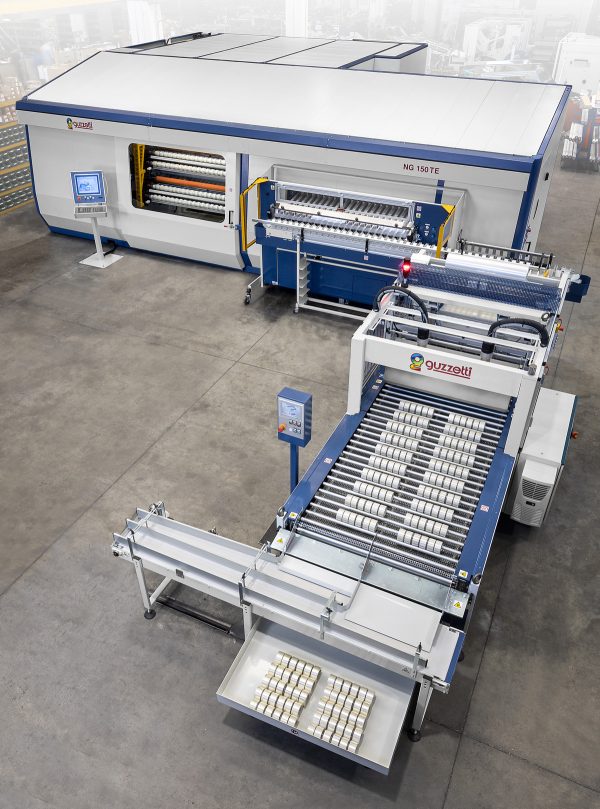

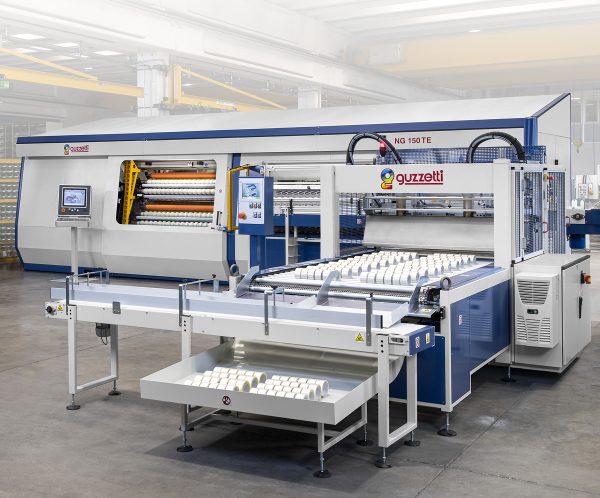

  • possibility of integration in complete production lines with an automatic slitter and the automatic cartoning machine Mod. CS6

TECHNICAL DATA

  • Pneumatic feeding: 6 Bar
  • Air consumption: 100 lt/min
  • Type of packaging: accordion/tower

PRODUCTION DATA

  • Output: about 36 packages/min – 2 packages per cycle

Technical data

  • Pneumatic feeding: 6 Bar
  • Air consumption: 100 lt/min
  • Type of packaging: accordion/tower

Production data

  • Output: about 18 packages/min
