Descripción
DESCRIPTION

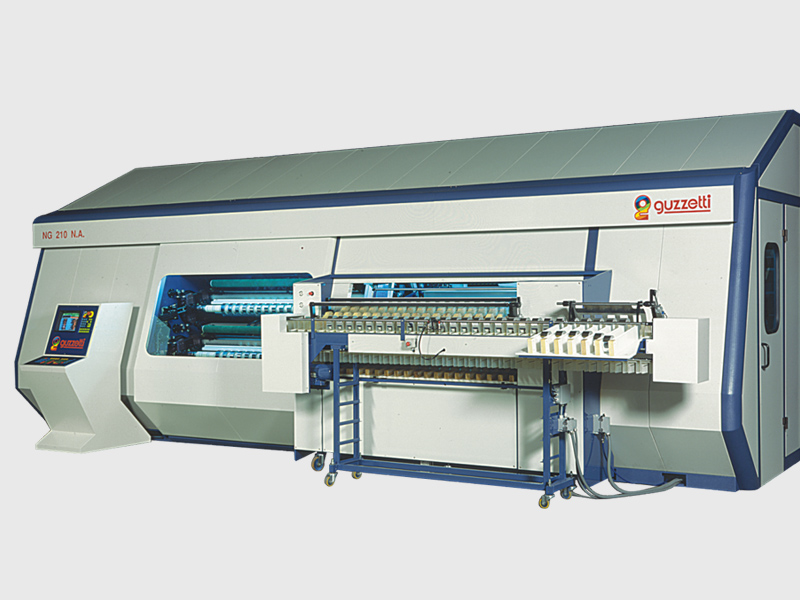

- The machine employs a special tabbing device for the application of a double side tape used to close and start rolls.
- Equipped with cutting tooling of new design which guarantee the maximum accessibility and the ability to change cutting tooling in only 10 minutes real time.
- Can be totally enclosed for sound proofing against noise pollution in the plant.
- Provided with different discharge systems which allow for a perfect match with «in-line» packaging machinery requiring either flat or vertical roll feeding.
- Offers a variety of unwind stations to satisfy any working need.
- Suitable for the processing of any kind of adhesive material (and also non-adhesive material in case of the special version NA).
- Rewind materials on 3″ Ø cores and can also be equipped to rewind on 1,5″ and 2″ Ø cores.
- Can be equipped with three different cutting system:
– razor
– score
– shear
TECHNICAL DATA
- Web width: 1000 mm÷3100 mm
- Cutting sizes: 9 mm÷100 mm
- Max rewind Ø: 210 mm (250 mm on request)
- Max unwind Ø: 800 mm÷1200 mm
- Cutting size change over time: 10 min.
PRODUCTION DATA
- Cycle time for 50 mt rolls: 35 sec.
- Max slitting speed: 350 mt/min.
